Home / Products / Hoses / Duct Hose Grey

Hoses

Standard Color GREY
Download Brochure
Enquire Now

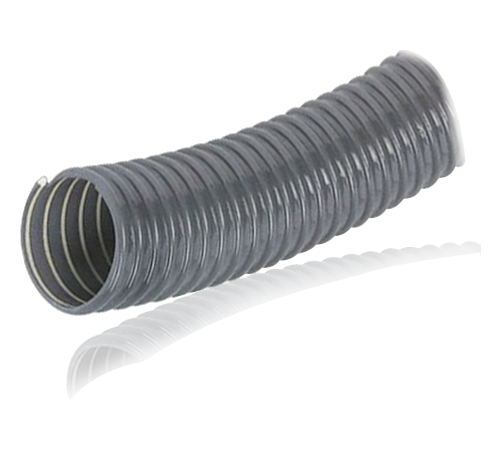

Duct Hose Grey

Tube
  • Thin & Very Smooth plasticized PVC Wall
  • Specially Compounded Rigid PVC
Reinforcement
  • Reinforcement Which Is Helically Wound & Inseparably Fused To  Soft Inner Walls
Cover
  • Wall: PVC
TEMP RANGE
  • -10 °C Approx. To +70 °C Approx.
Applications
  • Cold Or Warm Air Installations Of Various Kinds.
  • Cooling Of Motors & Air Intakes For All Types Of Machinery & Equipments.
  • Conveying Warm Air For Drying Purposes.
  • Removing Fumes From Factories,Fuel Tanks & Underground Installations.
MARKING ON THE HOSE
  • Ashish Realflex Duct Hose (Vacum) Mfg AAPL (India) Code...
Properties
  • Strong Resistance To Most Chemicals, Acids & Alkalies.
  • Abrasion Resistant
  • Crush Proof & Kink Proof
Features
  • Light Weight
  • Highly Flexible

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
4DUCT16 15.90 24.00 4.050 - - - - 40.00 0.19 30 - Yes 30
4DUCT22 21.00 26.60 2.800 - - - - 35.00 0.24 30 - Yes 30
4DUCT25 25.40 32.10 3.350 - - - - 45.00 0.31 30 - Yes 30
4DUCT30 31.80 38.64 3.420 - - - - 50.00 0.35 30 - Yes 30
4DUCT40 38.00 45.00 3.500 - - - - 55.00 0.42 30 - Yes 5
4DUCT50 50.80 58.20 3.700 - - - - 65.00 0.57 30 - Yes 5
4DUCT60 60.50 69.50 4.500 - - - - 75.00 0.63 30 - No 30
4DUCT63 63.00 72.00 4.500 - - - - 85.00 0.73 30 - Yes 5
4DUCT75 76.50 84.54 4.020 - - - - 95.00 0.80 30 - Yes 5
4DUCT80 80.00 89.00 4.500 - - - - 100.00 0.90 30 - No 30
4DUCT90 90.00 99.00 4.500 - - - - 110.00 1.03 30 - Yes 30
4DUCT100 101.20 111.94 5.370 - - - - 125.00 1.17 30 - Yes 5
4DUCT110 110.00 122.00 6.000 - - - - 125.00 1.33 30 - No 30
4DUCT125 127.00 137.20 5.100 - - - - 140.00 1.60 15 - Yes 5
4DUCT140 140.00 150.50 5.250 - - - - 150.00 1.80 15 - No 15
4DUCT150 152.40 163.10 5.350 - - - - 205.00 2.33 15 - Yes 5
4DUCT163 160.40 172.00 5.800 - - - - 210.00 2.66 15 - No 15
4DUCT200 204.00 216.40 6.200 - - - - 270.00 2.86 15 - Yes 5
4DUCT225 225.00 239.00 7.000 - - - - 350.00 3.33 15 - No 15
4DUCT250 253.00 266.00 6.500 - - - - 370.00 5.00 10 - Yes 5
4DUCT300 305.00 321.00 8.000 - - - - 470.00 6.50 10 - No 10
