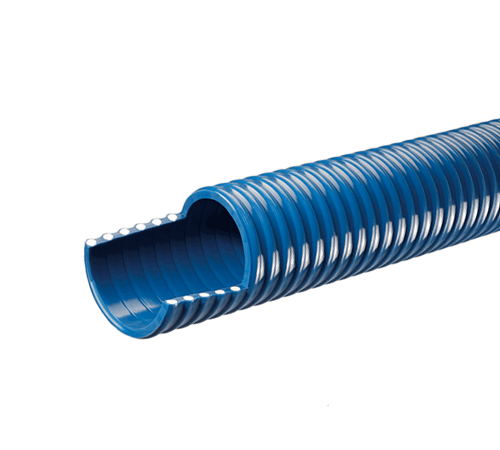

Oil Suction Hose Blue

Tube

Strong,Flexible & Smooth Plasticized PVC

Reinforcement

Hard Rigid PVC Spiral

Cover

Hard Rigid PVC Spiral

TEMP RANGE

-10 °C Approx. To +70 °C Approx

Applications

Strongly Recommended For Conveying Diesel Strongly Recommended For Conveying Diesel Lubricating Oil, Mineral Oils,Light Oils,Transformer etc.

MARKING ON THE HOSE

ASHISH REALFLEX OIL-HOSE (BLUE) MFG.AAPL (INDIA) CODE….

Properties

Resistant To Oil & Other Chemicals
Resistant To Absolute Vacuum , Easy To Handle
Quite Tough: Tough Enough To Resist Distoration Under Impact & Crush Loads During Service

Features

Flexibility: Specially Designed To Have Greater Flexibility Than Rubber & Hose Can Be Bent As Desired In Practical Uses
Smooth Inside Surface Results In Quick Conveyance Of Fluids,This Means Minimum Friction Loss,Saves Higher Energy & High Flow Rate

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
4OIL25	25.40	31.50	3.05	8	116	24	345	48.00	0.35	30	-	No	150
4OIL30	31.80	38.80	3.50	7	102	21	300	68.00	0.45	30	-	No	90
4OIL40	38.00	46.30	4.15	5.5	80	16.5	240	70.00	0.77	30	-	Yes	90
4OIL50	50.80	60.80	5.00	4.5	65	13.5	195	100.00	1.17	30	-	Yes	30
4OIL65	63.50	74.50	5.50	4.5	65	13.5	195	120.00	1.45	30	-	Yes	30
4OIL75	76.20	87.20	5.50	4.5	65	13.5	195	155.00	1.93	30	-	Yes	30
4OIL100	101.20	114.20	6.50	4	58	12	174	213.00	3.00	30	-	No	30
