Circular Mounting

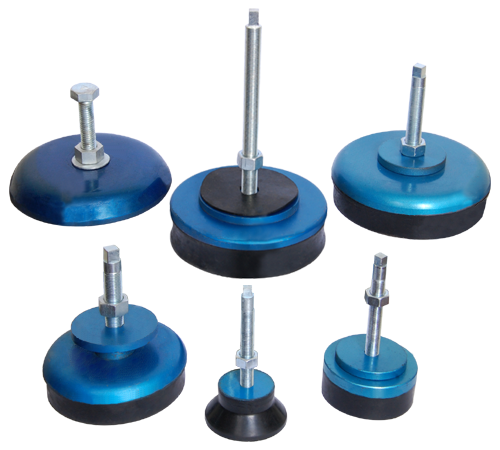

Dunlop Circular Mounts are suitable for high speed rotating machines having small or no axial forces. These mountings are ideally suitable for Machine tool presses & equipment with low base area (about 1 sq mtr) but height more than 1.5 mtr. It also acts as leveling device for un-even flooring.

TYPICAL APPLICATIONS

Compressors
Tool Room Machines
Lathe & CNC Machines
Stamping Machines
Power Presses
Turning Centres
Milling Machines
Precision Grinding Machines
Textile Machines
Injection Moulding Machine
Printing Machines

DESIGN FEATURES

Have Plain holes in the base. Machine leveling is done by turning the bolt which lifts the cover plate. (HD models).
The circular mounts are placed between the machine feet and the floor. The machine feet rests on top of the circular mounts and vibrations are isolated based on the vibration frequency generated by the machine and natural frequency of the circular mounts.
These mountings use rubber in shear and compression. Ideal for where fail safe mounting is essential.

Part No.	Rubber Shore Hardness	Max. Load (kg)	D (mm)	H (mm)	D (mm)	Levelling Adjustment mm	Natural Frequency at Max. Load (Hz)	Bolt
50 HD	65	100	50	36	32	10	7	M12
80 HD	65	200	80	46	45	12	7	M12
120 HD	65	800	120	52	60	12	7	M16
160 HD	65	2500	160	56	90	15	8	M16
200 HD	65	6000	200	65	120	15	8	M25
120 LD	65	400	120	35	-	-	7	M16
160 LD	65	1000	160	38	-	-	8	M16

For further details, kindly download the catalogue.
