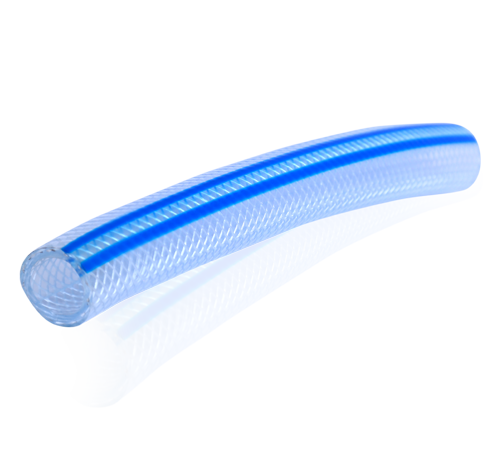

PVC Braided Hose

Tube

Transparent Plasticized PVC Tube
Smooth Interior & Exterior Wall

Reinforcement

High Tensile Synthetic Textile Reinforcement

Cover

Smooth PVC Exterior Wall

TEMP RANGE

-10 °C Approx. To +70 °C Approx.

Applications

Multipurpose Hose for Air, Pneumatic, Heavy Duty Delivery of Water & Chemicals.

MARKING ON THE HOSE

Dunlop Dunloflex Braided Hose Size… WP …Mfg Sel

Properties

Optimized Flow Properties
Good Resistance To Alkali, Acids, UV, Ozone, Oil, Chemicals & Moisture.
Gas & Liquid Tight
Crush-Proof & Kink Resistant

Features

Highly Flexible
Small Bending Radius
Abrasion Resistant
Strong Enough To Withstand High Pressure, Total Consolidation & Adhesion Levels Are Superb.

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
3BR6	6.00	12.00	3.00	25	363	75	1080	-	-	100	-	Yes	100
3BR8	8.00	40.00	3.00	25	363	75	1080	-	-	100	-	Yes	100
3BR10	10.00	17.00	3.50	25	363	75	1080	-	-	100	-	Yes	100
3BR12	12.00	19.00	3.50	20	290	60	870	-	-	100	-	Yes	100
3BR15	15.00	22.00	3.50	20	290	60	870	-	-	100	-	No	100
3BR20	20.00	28.00	4.00	20	290	60	870	-	-	100	-	Yes	100
3BR25	25.00	34.60	4.80	15	218	45	660	-	-	100	-	Yes	100
3BR30	30.00	39.60	4.80	15	218	45	660	-	-	50	-	Yes	50
3BR40	40.00	50.00	5.00	15	218	45	660	-	-	50	-	Yes	50
3BR50	50.00	62.00	6.00	10	145	15	215	-	-	50	-	Yes	50
