Sandwich Mounting

The Sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. They are very slim, large supporting surface area stackable mounts. The suspended equipment is free to move in all directions. High ratio of axial stiffness to radial stiffness. Very high axial loads.

TYPICAL APPLICATIONS
  • Lift Head Gear
  • Engine Mounts on Road Vehicles
  • Vibrating Screens
  • Conveyor Systems
  • Hoppers
  • Free Standing Refrigeration Isolators
  • Heavy Machines Isolator (Lathes, Drilling Machines etc.)
  • Coach vehicle body Isolators
  • Mobile Construction Plant
DESIGN FEATURES
  • Molded in First Grade Natural Rubber
  • Steel Metals, Etch printed on external surfaces
  • Sandwich mountings should not be used in tension or exposed to contamination by mineral oils

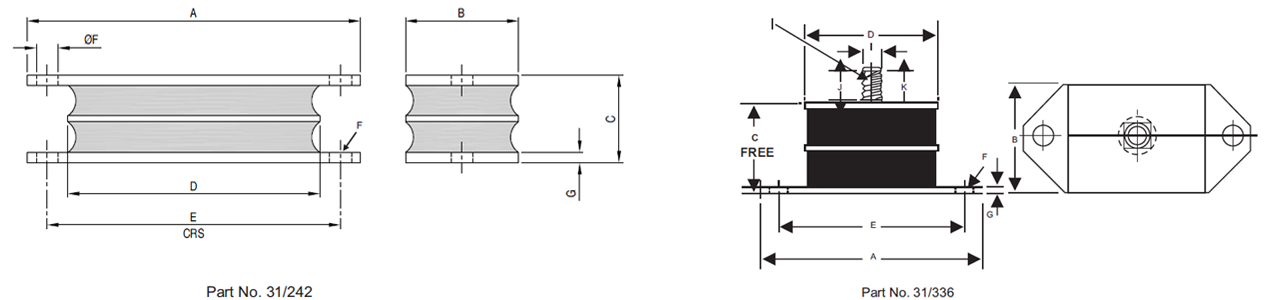

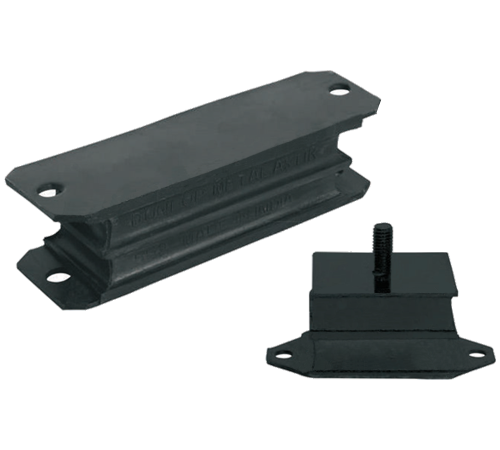

Types of Sandwich Mounts

Sandwich Mounts

31/242

31/336

PARTNo. RUBBER SHORE HARDNESS MAX LOAD / DEFLECTION DIMENSIONS (mm) STEEL INTERLEAF
COMPRESSION SHEAR A B C D E F G H I
kg mm kg mm

31/242

40
50
60
70

448
575
846
989

3.0
2.9
2.8
2.2

120
175
185
200

14.6
14.0
9.4
7.8

168

57

43

127

146

11

5

-

-

YES

31/336

40
50
60
70

95
135
205
310

2.8
2.8
2.8
2.8

42
65
80
90

15.0
15.0
12.0
9.0

89

41

36

54

74.5

6.75

2.7

M8

14

YES

For further details, kindly download the catalogue.
