Home / Products / Hoses / Duct Hose Grey

Hoses

Standard Color GREY

Download Brochure

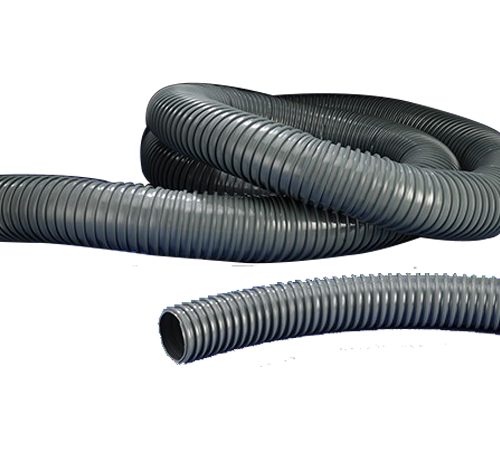

Duct Hose Grey

Tube

Thin & Very Smooth Plasticized PVC Wall
Specially Compounded Rigid PVC

Reinforcement

Reinforcement Which Is Helically Wound & Inseparably Fused To Soft Inner Walls.

Cover

Wall: Corrugated PVC

TEMP RANGE

-10 °C Approx. To +70 °C Approx

Applications

Cold Or Warm Air Installations Of Various Kinds
Cooling Of Motors & Air Intakes For All Types Of Machinery & Equipments
Conveying Warm Air For Drying Purposes
Removing Fumes From Factories,Fuel Tanks & Underground Installations
Transportation of Powders Gases & Liquids
Transportation Of Wheat & Other Serials In Course Of Processing
Removel of Particles Erected in Stone-Masoning, Fibre Glass & Asbestos Processing
General Dust Collection, Domestic Vaccum Cleaning Equipments & Heavy Duty Dust Extraction
Ventilation & Heating Systems In Domestic,Commercial & Industrial Locations
Collection of Fibre Waste, Sawdust, Wood Shavings & Dust Collections of Metal Grinders

MARKING ON THE HOSE

Dutron Kanaflex Duct Hose Size… India

Properties

Strong Resistance To Most Chemicals, Acids & Alkalies
Abrasion Resistant
Crush Proof & Kink Proof

Features

Light Weight
Highly Flexible

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
2DUCT16	16.00	22.00	-	-	-	-	-	22.00	-	30	-	No	30
2DUCT22	21.00	28.60	-	-	-	-	-	35.00	-	30	-	No	30
2DUCT25	25.40	32.10	-	-	-	-	-	45.00	-	30	-	No	30
2DUCT30	31.80	38.64	-	-	-	-	-	50.00	-	30	-	No	30
2DUCT40	38.00	45.00	-	-	-	-	-	55.00	-	30	-	Yes	1
2DUCT50	50.80	57.20	-	-	-	-	-	65.00	-	30	-	Yes	1
2DUCT60	60.50	68.50	-	-	-	-	-	75.00	-	30	-	Yes	1
2DUCT63	63.00	70.50	-	-	-	-	-	85.00	-	30	-	Yes	1
2DUCT75	76.50	83.54	-	-	-	-	-	95.00	-	30	-	Yes	1
2DUCT80	80.00	87.04	-	-	-	-	-	100.00	-	30	-	No	30
2DUCT90	90.00	97.04	-	-	-	-	-	110.00	-	30	-	Yes	1
2DUCT100	101.20	108.94	-	-	-	-	-	125.00	-	30	-	Yes	1
2DUCT110	110.00	117.74	-	-	-	-	-	130.00	-	30	-	No	30
2DUCT125	127.00	135.20	-	-	-	-	-	140.00	-	15	-	Yes	1
2DUCT140	140.00	148.20	-	-	-	-	-	150.00	-	15	-	No	15
2DUCT150	152.40	161.10	-	-	-	-	-	205.00	-	15	-	Yes	1
2DUCT160	160.00	168.70	-	-	-	-	-	210.00	-	15	-	Yes	1
2DUCT200	204.00	214.40	-	-	-	-	-	270.00	-	10	-	Yes	1
2DUCT225	225.00	-	-	-	-	-	-	320.00	-	10	-	No	10
2DUCT250	253.00	264.00	-	-	-	-	-	370.00	-	10	-	Yes	1
2DUCT300	305.00	320.00	-	-	-	-	-	370.00	-	10	-	Yes	1
