Home / Products / Hoses / Duct Hose Transparent

Hoses

Standard Color TRANSPARENT

Download Brochure

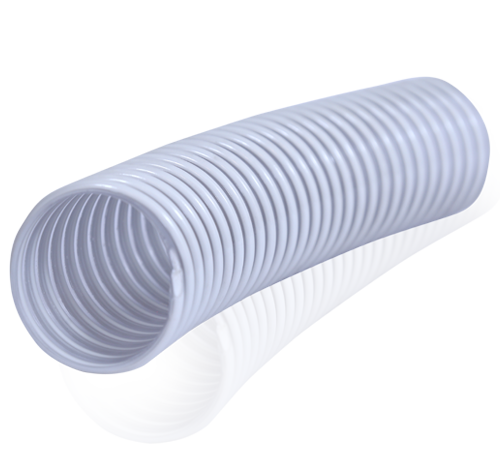

Duct Hose Transparent

Tube

Thin & Very Smooth Plasticized PVC Wall
Specially Compounded Rigid PVC

Reinforcement

Reinforcement Which Is Helically Wound & Inseparably Fused To Soft Inner Walls.

Cover

Wall: Corrugated PVC

TEMP RANGE

-10 °C Approx. To +70 °C Approx

Applications

Cold Or Warm Air Installations Of Various Kinds
Cooling Of Motors & Air Intakes For All Types Of Machinery & Equipments
Conveying Warm Air For Drying Purposes
Removing Fumes From Factories,Fuel Tanks & Underground Installations
Transportation of Powders Gases & Liquids
Transportation Of Wheat & Other Serials In Course Of Processing
Removel of Particles Erected in Stone-Masoning, Fibre Glass & Asbestos Processing
General Dust Collection, Domestic Vaccum Cleaning Equipments & Heavy Duty Dust Extraction
Ventilation & Heating Systems In Domestic,Commercial & Industrial Locations
Collection of Fibre Waste, Sawdust, Wood Shavings & Dust Collections of Metal Grinders

MARKING ON THE HOSE

Dutron Kanaflex Duct Hose Size… India

Properties

Strong Resistance To Most Chemicals, Acids & Alkalies
Abrasion Resistant
Crush Proof & Kink Proof

Features

Light Weight
Highly Flexible

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
2DUCT16TPT	16.00	22.00	-	-	-	-	-	22.00	-	30	-	No	30
2DUCT22TPT	21.00	28.60	-	-	-	-	-	35.00	-	30	-	No	30
2DUCT25TPT	25.40	32.10	-	-	-	-	-	45.00	-	30	-	No	30
2DUCT30TPT	31.80	38.64	-	-	-	-	-	50.00	-	30	-	No	30
2DUCT40TPT	38.00	45.00	-	-	-	--	-	55.00	-	30	-	Yes	1
2DUCT50TPT	50.80	57.20	-	-	-	-	-	65.00	-	30	-	Yes	1
2DUCT60TPT	60.50	68.50	-	-	-	--	-	75.00	-	30	-	Yes	1
2DUCT63TPT	63.00	70.50	-	-	-	-	-	85.00	-	30	-	Yes	1
2DUCT75TPT	76.50	83.54	-	-	-	-	-	95.00	-	30	-	Yes	1
2DUCT80TPT	80.00	87.04	-	-	-	--	-	100.00	-	30	-	Yes	1
2DUCT90TPT	90.00	97.04	-	-	-	-	-	110.00	-	30	-	No	30
2DUCT100TPT	101.20	108.94	-	-	-	-	-	125.00	-	30	-	Yes	1
2DUCT110TPT	110.00	117.74	-	-	-	-	-	130.00	-	30	-	No	30
2DUCT125TPT	127.00	135.20	-	-	-	-	-	140.00	-	15	-	Yes	1
2DUCT140TPT	140.00	148.20	-	-	-	-	-	150.00	-	15	-	No	15
2DUCT150TPT	152.40	161.10	-	-	-	-	-	205.00	-	15	-	Yes	1
2DUCT160TPT	160.00	168.70	-	-	-	-	-	210.00	-	15	-	No	15
2DUCT200TPT	204.00	214.40	-	-	-	-	-	270.00	-	10	-	No	15
2DUCT225TPT	225.00	-	-	-	-	-	-	320.00	-	10	-	No	10
2DUCT250TPT	253.00	264.00	-	-	-	-	-	370.00	-	10	-	No	10
2DUCT300TPT	305.00	320.00	-	-	-	-	-	370.00	-	10	-	No	10
