Hoses

Standard Color BLACK WITH GREEN STRIP

Download Brochure

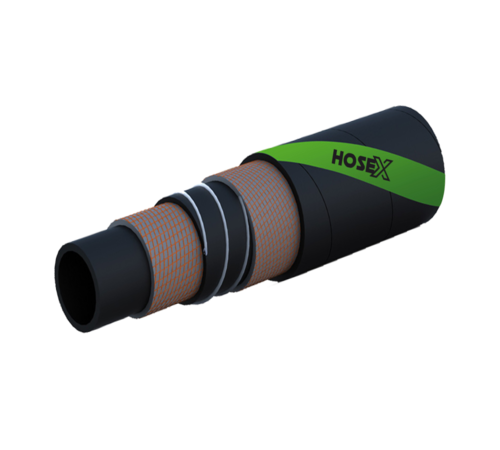

Aqualine 300

Tube

Black With Green Strip

Reinforcement

High Tensile Textile Plies And Steel Helix Wire

Cover

Black,Smooth Rubber,Weather And Abrasion Resistant Rubber
Fabric Impression

TEMP RANGE

-40°C to +70°C

Applications

Water Suction & Delivery hose suitable for Water & Non Corrosive Fluids
Suitable for Irrigation Systems & Industrial Waste Water

Features

Weather & Abrasion Resistant Rubber

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501AQ30038	38.50	50.00	5.75	20	300	60	900	225	1.12	40	0.80	NO	40
501AQ30051	50.80	63.00	6.10	20	300	60	900	300	1.77	40	0.80	NO	40
501AQ30064	63.40	76.00	6.30	20	300	60	900	375	2.23	40	0.80	NO	40
501AQ30076	76.20	90.00	6.90	20	300	60	900	450	2.87	40	0.80	NO	40
501AQ300102	101.60	120.00	9.20	20	300	60	900	600	5.04	40	0.80	NO	40
501AQ300127	127.00	146.00	9.50	20	300	60	900	750	6.77	40	0.80	NO	40
501AQ300152	152.00	172.00	10.00	20	300	60	900	900	9.11	40	0.80	NO	40
