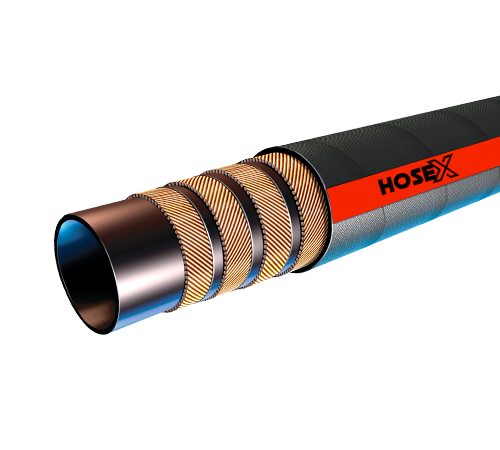

DIN 20023 / DIN EN 856 4SH

Tube
  • Oil Resistant Synthetic Rubber
Reinforcement
  • Four High Tensile Steel Spirals
Cover
  • Environment & Oil Resistant
  • Synthetic Rubber
TEMP RANGE
  • -40°C to +100°C
  • Intermittent Services 125°C
Applications
  • Very High Pressure Power Lines
MARKING ON THE HOSE
  • HoseX 4SH DN 25 DIN/EN 856 -EXCEEDS J517 100 4SH 1"-25.4 MM-WP 38Mpa / 380 Bar / 5510 PSI-MSHA
Applicable standards
  • ISO 3862
  • DIN EN 856 4SH
  • SAE J517 100 R10
Features
  • Weather,Abrasion & Oil Resistant

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
5014SH12 19.00 31.90 6.45 420 6092 1680 24360 280 1.60 40 - YES 5
5014SH16 25.40 38.30 6.45 380 5511 1520 22040 340 2.00 40 - YES 5
5014SH20 31.80 44.90 6.55 325 4714 1300 18850 460 2.80 40 - YES 5
5014SH24 38.10 52.90 7.40 290 4206 1160 16820 560 3.00 40 - YES 5
5014SH32 50.80 67.50 8.35 250 3626 1000 14500 700 4.00 40 - YES 5
