Home / Products / Hoses / Oildecant 150

Hoses

Standard Color BLACK WITH RED STRIP

Download Brochure

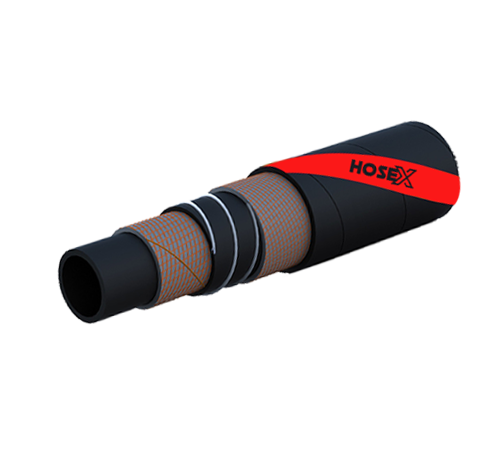

Oildecant 150

Tube

Black Smooth NBR Rubber,Suitable For Petroleum Products With Aromatic Content Up To 60%,Max 5% MTBE & Max 15% Oxygenated Compounds.

Reinforcement

Textile Piles,Helix Wire Embedded,Antistatic Copper Wire

Cover

Black CR & NBR Blend Rubber,Resistant To Oil,Petrol, Ozone And Weather Conditions
Fabric Impression

TEMP RANGE

-30°c +100°c

Applications

Suitable for Filling of Tank Truck & for Delivery of Fuel from Tank Trucks to Petrol Stations

MARKING ON THE HOSE

HoseX OILDECANT150 OIL S/D WP:10 Bar 150 PSI Conforming To IS 10733/1983

Features

Oil, Petrol, Ozone & Weather Resistant

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501OILD15038	38.00	51.80	6.90	10	145	30	435	275	1.14	60	0.90	Yes	1
501OILD15051	51.00	64.40	6.70	10	145	30	435	300	1.94	60	0.90	Yes	1
501OILD15064	64.00	78.40	7.20	10	145	30	435	375	2.58	60	0.90	Yes	1
501OILD15076	76.00	90.80	7.40	10	145	30	435	450	2.99	60	0.80	Yes	1
501OILD150102	102.00	119.6	8.80	10	145	30	435	600	4.26	30	0.80	Yes	1
