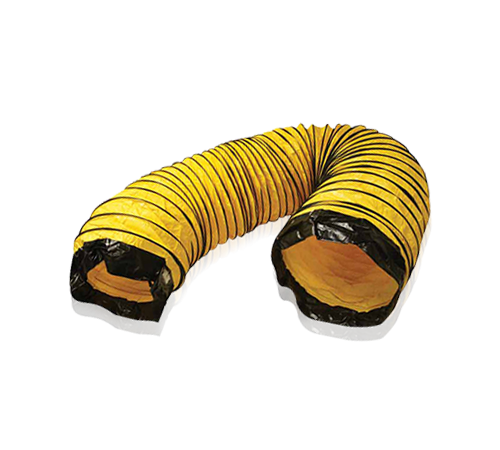

PVC Flexible Yellow Air Duct Hose

Tube

Wall: High Density PVC Coated Polyester Fabric

Reinforcement

Spiral: Reinforced Steel Wire Covered in PVC Strip

Cover

Exterior Spiral Cover: PVC Strip
Wall: High Density PVC Coated Polyester Fabric

TEMP RANGE

-20 °C Approx. to +80 °C Approx.

Applications

As Ventilation Duct ideal for Air Conditioning & Ventilation of Fumes, Light Duty Dust Extraction & Movement of Air
Widely used in Working Environment such as Airport, Tunnel, Basement, Waste Gas Exhaust Out
As a Flexible Connection Between Grilles Diffusers, Fans & Other Air Movement Units.

Properties

Wear Strip Offers External Abrasion Resistance
Highly Flexible
Flame Retardant
Compressible & Easy to Carry
Oil, Acid & Alkali Resistant
Very Small Bending Radius
Kink Proof & Water Proof

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501PYD200	200.00	-	0.38	0.45	7	-	-	300.00	0.660	10.00	-	YES	10
501PYD300	300.00	-	0.38	0.35	5	-	-	460.00	1.040	10.00	-	YES	10
501PYD350	350.00	-	0.38	0.30	4	-	-	530.00	1.22	10.00	-	YES	10
501PYD400	400.00	-	0.38	0.25	4	-	-	600.00	1.30	10.00	-	YES	10
501PYD450	450.00	-	0.38	0.22	3	-	-	690.00	1.50	10.00	-	YES	10
501PYD500	500.00	-	0.38	0.20	3	-	-	760.00	2.04	10.00	-	YES	10
501PYD600	600.00	-	0.38	0.18	3	-	-	900.00	2.16	10.00	-	YES	10
