Hoses

Standard Color BLACK
Download Brochure
Enquire Now

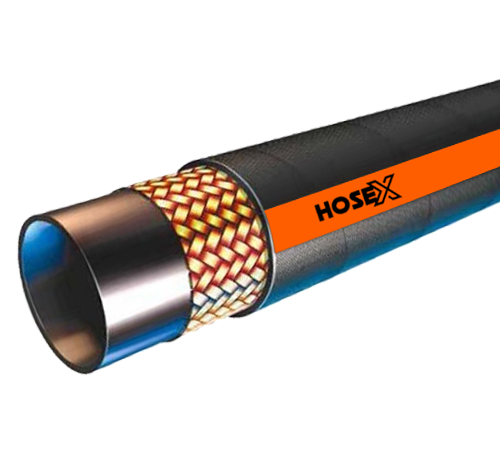

SAE 100 R1 AT

Tube
  • Oil Resistant Synthetic Rubber
Reinforcement
  • One High Tensile Steel Braid
Cover
  • Environment & Oil Resistant Synthetic Rubber
  • Fabric impression, Smooth finish upto 25mm
TEMP RANGE
  • Continuous Service:  -40°C/+100°C
  • Maximum Temperature:(Intermittent Service)  125°C
Applications
  • Low - Medium Pressure Lines, Return Lines
MARKING ON THE HOSE
  • HoseX 1SN DN 25 DIN/EN 853 - Exceeds SAE 100 R1 AT 1"- 25.4 MM - WP 8.8Mpa/88Bar/1276PSI - MSHA
Applicable standards
  • SAE 100 R1 AT (EN 853 1SN)

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
501R104 6.40 13.50 3.55 225 3263 900 13050 100.00 0.24 - - Yes 1
501R105 7.90 15.00 3.55 215 3118 860 12470 115.00 0.28 - - Yes 1
501R106 9.50 17.50 4.00 180 2610 720 10440 127.00 0.40 - - Yes 1
501R108 12.70 20.70 4.00 160 2320 640 9280 178.00 0.53 - - Yes 1
501R110 15.90 23.90 4.00 130 1885 520 7540 200.00 0.64 - - Yes 1
501R112 19.10 27.70 4.30 105 1523 420 6090 241.00 0.75 - - Yes 1
501R116 25.40 35.60 5.10 88 1276 352 5104 300.00 1.00 - - Yes 1
501R120 31.80 43.50 5.85 63 914 252 3654 420.00 1.25 - - Yes 1
501R124 38.10 50.60 6.25 50 725 200 2900 500.00 1.45 - - Yes 1
501R132 50.80 64.00 6.60 40 580 160 2320 635.00 2.00 - - Yes 1
501R140 63.80 77.00 6.60 36 522 144 2100 760.00 2.89 - - Yes 1
501R148 76.00 88.00 6.00 35 508 140 2030 900.00 3.43 - - Yes 1
