Hoses

Standard Color BLACK

Download Brochure

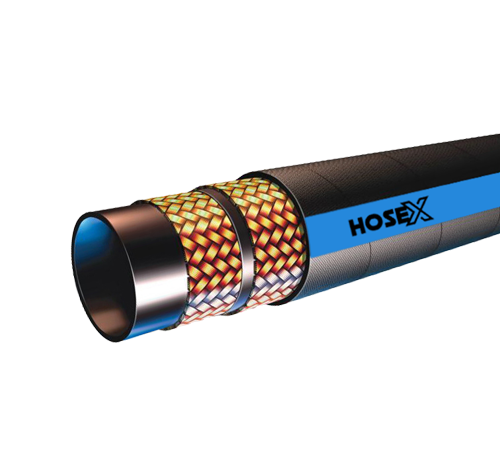

SAE 100 R2 AT Smooth Finish

Tube

Oil Resistant Synthetic Rubber

Reinforcement

Two High Tensile Steel Braid

Cover

Environment & Oil Resistant Synthetic Rubber
Outer Smooth Cover

TEMP RANGE

Continuous Service: -40°C/+100°C
MaximumTemperature:(Intermittent Service) 125°C

Applications

Medium - High Pressure Lines, Return Lines

MARKING ON THE HOSE

Hosex 2SN DN 25 DIN/EN 853 - Exceeds SAE 100 R2 AT 1" - 25.4 mm - WP 16.5 MPA/165Bar/2393PSI - MSHA

Applicable standards

SAE 100 R2 AT (EN 853 2SN)

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
7R204(P)	6.40	15.00	4.30	400	5801	1600	23200	100	0.32	-	-	Yes	5
7R205(P)	7.90	16.60	4.35	350	5076	1400	20300	115	0.45	-	-	Yes	5
7R206(P)	9.50	19.00	4.75	330	4786	1320	19140	127	0.53	-	-	Yes	5
7R208(P)	12.70	22.20	4.75	275	3988	1100	15950	178	0.70	-	-	Yes	5
7R210(P)	15.90	25.40	4.75	250	3626	1000	14500	200	0.85	-	-	Yes	5
7R212(P)	19.10	29.30	5.10	215	3118	860	12470	241	1.00	-	-	Yes	5
7R216(P)	25.40	38.10	6.35	165	2393	660	9570	300	1.35	-	-	Yes	5
