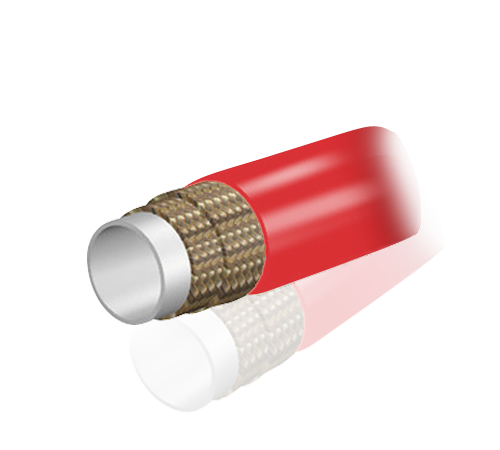

Thermoplastic Jack Hose

Tube

Thermoplastic Elastomer

Reinforcement

Double Steel Wire Braids

Cover

Red / Orange Color,Polyurethane

TEMP RANGE

-40°C to +100°C
Temp. Not to Exceed +70°C For Air & Water Based Fluids

Applications

Very High Pressure Hydraulic Lines 520 to 700 Bar
Compact, High Pressure, Light Weight & Low Change in Length
For use with Petroleum, Synthetic or Water Based Fluids in Hydraulic Systems
Suitable for Agricultural Machinery, Earthmoving, Articulating & Telescopic Booms and Material Handling Equipments
Mainly used for Rescue, Safety Equipments, Bolt Tensioning Tools & Jacking & Re-Railing Equipments

MARKING ON THE HOSE

JACK HOSE ID…MAX WP…PSI(…BAR)

Properties

Suitable for Hydraulic Application with Increased Resistance To Abrasion

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501TPJACK04	6.40	14.10	3.85	700	10153	1750	25375	100.00	0.33	-	-	Yes	5
501TPJACK06	9.50	17.50	4.00	700	10153	1750	25375	150.00	0.48	-	-	Yes	5
