Home / Products / Hoses / Tornado Earth

Hoses

Standard Color TRANSPARENT WITH TWO LINES
Download Brochure
Enquire Now

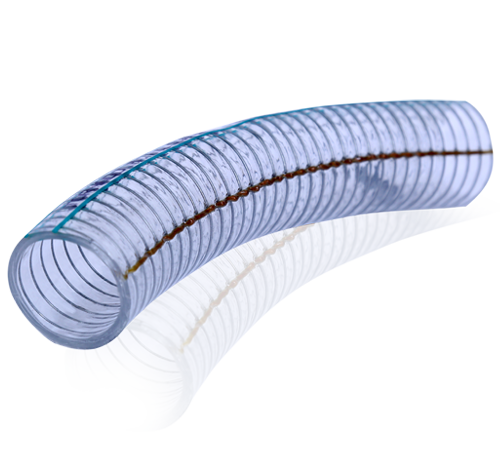

Tornado Earth

Tube
  • Strong Very Flexible & Smooth ,Transparent Plasticized PVC.
Reinforcement
  • Shock Resistant Galvanised Steel Spiral Wire &  Straight Copper Wire Inserted.
Cover
  • Crushing, Abrasion & Weather Resistant Smooth Plasticized PVC
TEMP RANGE
  • -5 °C Approx. to +65 °C Approx
Applications
  • Specially used for Conveying Gas, Liquid & Powder in places easily generating Static Charge such as Buildings, Factories, Mines, Oil Storage.
MARKING ON THE HOSE
  • TORNADO PVC Anti Static Hose ( -5°C to +65°C ) Size…ID x OD WP...
Features
  • With Copper Wire inserted in the hose, this hose Can avoid the blockage of the flowing media due To generation of Static Charge & also protect Users from electirc shock or electirc current Impingment.

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
501TE25 25.00 32.00 3.50 6 87 18 260 60.00 0.48 30 0.88 Yes 5
501TE40 40.00 48.00 4.00 5 73 15 215 90.00 0.90 30 0.88 Yes 5
501TE50 50.00 60.00 5.00 5 73 15 215 125.00 1.31 30 0.79 Yes 5
501TE60 60.00 70.00 5.00 4 58 12 175 150.00 1.98 30 0.69 Yes 5
501TE75 75.00 87.00 6.00 4 58 12 175 195.00 2.56 20 0.69 Yes 5
