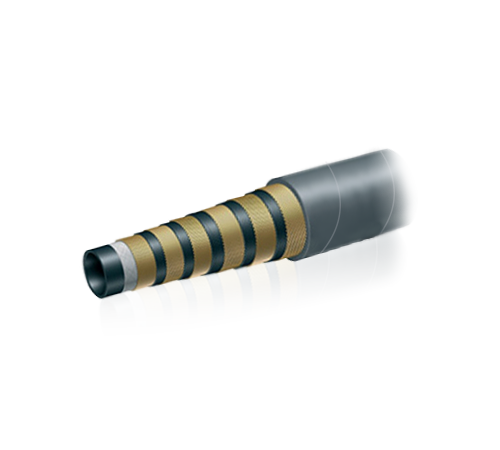

SAE J 517 - 100 R13

Tube

Oil Resistant Synthetic Rubber

Reinforcement

Four Or Six High Tensile Steel Spirals

Cover

Environment & Oil Resistant
Synthetic

TEMP RANGE

-40°C to +100°C
Intermittent Services125°C

Applications

Very High Pressure Power Lines

MARKING ON THE HOSE

HoseX 6S - EXCEEDS SAE J517 100 R13 1.1/2" - 38.1 MM - WP 35Mpa/350Bar/5075 PSI-MSHA

Applicable standards

SAE J 517 - 10 R213
EN 856
ISO 3862

Features

Weather, Abrasion & Oil Resistant

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501R1324	38.10	56.80	9.35	350	5076	1400	20300	530	4.44	40		Yes	5
501R1332	50.80	70.40	9.80	350	5076	1400	20300	630	7.10	40		Yes	5
