Hoses

Standard Color OUTER COVER - GREEN INNER TUBE - WHITE

Download Brochure

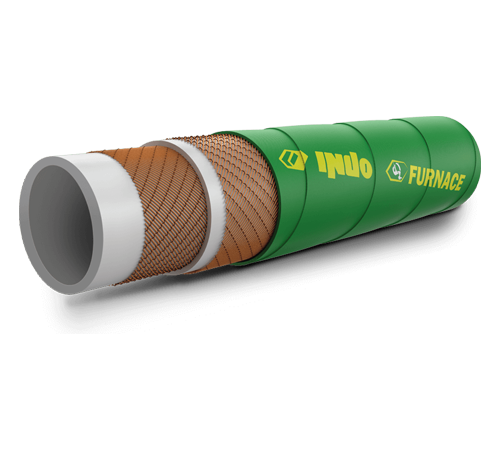

Furnace Carbon Free Hose

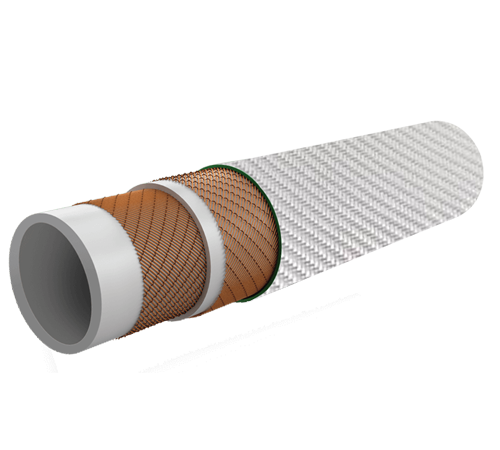

Tube

Smooth and Synthetic Rubber.

Reinforcement

High Tensile Textile Plies.

Cover

Green, Smooth, Weather & Abrasion Resistant Rubber.
Fabric Impression.

TEMP RANGE

-30°C Approx to +100°C Approx.

Applications

For Cable Protection in Steel Factories.
For Carbon Blower Applications in Steel Mills & Foundaries.
For Cooling Water Transfer in Steel Mills & Foundaries.

MARKING ON THE HOSE

Indo Carbon Free Heat Resistant Hose Made in India

Properties

Seamless
Uniform Thickness
Smooth Bore
Mandrel Built

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
1CF10	10	-	-	17.2	249	69	1000	-	-	-	-	Yes	5
1CF12.5	12.5	-	-	17.2	249	69	1000	-	-	-	-	Yes	5
1CF16	16.00	-	-	17.2	249	69	1000	-	-	-	-	Yes	5
1CF20	19.00	-	-	17.2	249	69	1000	-	-	-	-	Yes	5
1CF22	22.00	-	-	17.2	249	69	1000	-	-	-	-	No	100
1CF25	25.00	-	-	17.2	249	69	1000	-	-	-	-	Yes	5
1CF28	28.00	-	-	17.2	249	69	1000	-	-	-	-	No	100
1CF31.5	32.00	44.0	6.00	17.2	249	69	1000	-	-	40	-	Yes	5
1CF35	35.00	-	-	17.2	249	69	1000	-	-	40	-	No	40
1CF38	38.00	51.50	6.75	17.2	249	69	1000	-	-	40	-	Yes	5
1CF45	45.00	-	-	14	203	56	800	-	-	40	-	No	40
1CF50	50.00	66.00	8.00	14	203	56	800	-	-	40	-	Yes	5
1CF56	56.00	77.00	10.50	14	203	56	800	-	-	40	-	Yes	5
1CF60	60.00	-	-	14	203	56	800	-	-	40	-	No	20
1CF63	63.00	-	-	14	203	56	800	-	-	40	-	Yes	5
1CF70	70.00	90.00	10.00	14	203	56	800	-	-	40	-	No	20
1CF75	75.00	96.00	10.50	14	203	56	800	-	-	40	-	Yes	5
1CF80	80.00	-	-	14	203	56	800	-	-	40	-	No	20
1CF88	88.00	111.00	11.50	14	203	56	800	-	-	40	-	Yes	5
1CF100	100.00	124.00	12.00	10	145	40	580	-	-	40	-	No	20
