Home / Products / Hoses / Multipurpose Chemical Hose

Hoses

Standard Color BLACK

Download Brochure

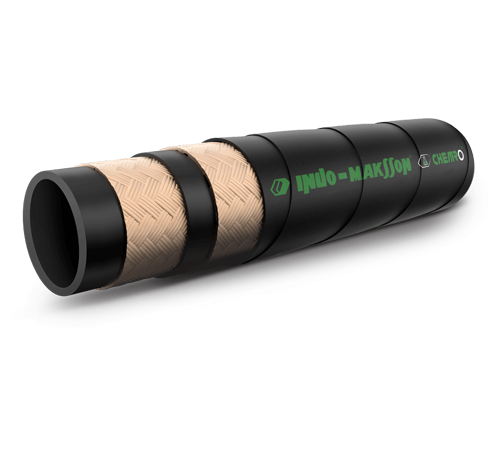

Multipurpose Chemical Hose

Tube

Black EPDM Rubber Resistant to Chemicals.

Reinforcement

High Tensile Textile Plies.

Cover

Black, Smooth, Weather, Abrasion & Ozone Resistant EPDM Rubber.
Fabric Impression.

TEMP RANGE

-30°c to +100°c

Applications

For Discharge of Wide Range of Chemicals ( Refer to Chemical Resistance Chart )
Delivery Hose for Organic & Non - Organic Acids, Salts & Bases, Ketons & Paint with Water Basis.
Also Suitable for Dye-Stuff for Cloth.

MARKING ON THE HOSE

Multi Purpose Chemical Hose Made in India

Applicable standards

IS : 7654/1975 Type I

Properties

Seamless
Uniform Thickness
Smooth Bore
Mandrel Built

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
1CHL12.5	12.50	-	-	12	174	48	700	-	-	-	-	No	200
1CHL20	19.00	31.00	6.00	12	174	48	700	152	-	-	-	Yes	5
1CHL25	25.00	38.00	6.50	12	174	48	700	203	-	-	-	Yes	5
1CHL31.5	31.50	45.00	7.00	12	174	48	700	215	-	-	-	Yes	5
1CHL38	38.00	52.00	7.00	12	174	48	700	254	-	-	-	Yes	5
1CHL50	50.00	68.00	9.00	12	174	48	700	355	-	-	-	Yes	5
