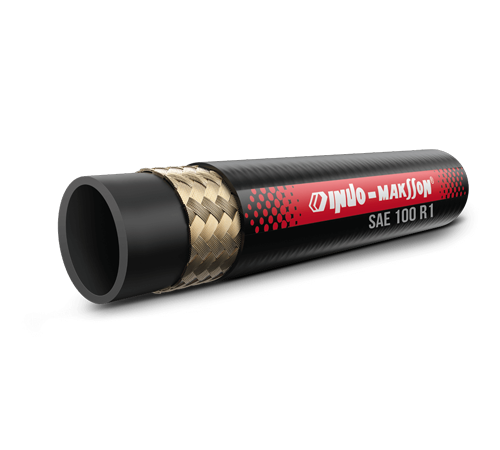

SAE 100 R1 AT

Tube
  • Black, Synthetic Oil Resistant Rubber
Reinforcement
  • One High Tensile Steel Wire Braid
Cover
  • Black, Weather & Oil Resistant Synthetic Rubber
TEMP RANGE
  • -40°C Approx to +100°C Approx ( +120°C Intermittent )



Applications
  • Medium Pressure Hydraulic Lines
MARKING ON THE HOSE
  • Size...R1 Indo-1AT-IM6 HI Impulse DIN EN 853 1SN ID...WP...Bar/PSI (Exceeds SAE 100 R1 AT) Flame Resistant
Applicable standards
  • SAE 100 R1 AT (DIN EN 853 1SN)

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
1R104 6.40 13.50 3.55 225 3263 900 13050 100.00 0.25 - - Yes 5
1R105 7.90 15.00 3.55 215 3118 860 12470 115.00 0.27 - - Yes 5
1R106 9.50 17.50 4.00 180 2611 720 10440 127.00 0.34 - - Yes 5
1R108 12.70 20.60 3.95 160 2321 640 9280 178.00 0.46 - - Yes 5
1R110 15.90 23.70 3.90 130 1885 520 7540 200.00 0.55 - - Yes 5
1R112 19.10 27.70 4.30 105 1523 420 6090 241.00 0.68 - - Yes 5
1R116 25.40 35.60 5.10 88 1276 352 5104 300.00 1.030 - - Yes 5
1R120 31.80 43.50 5.85 63 914 252 3654 420.00 1.25 - - Yes 5
1R124 38.10 50.60 6.25 50 725 200 2900 500.00 1.45 - - Yes 5
1R132 50.80 64.00 6.60 40 580 160 2320 635.00 2.00 - - Yes 5
