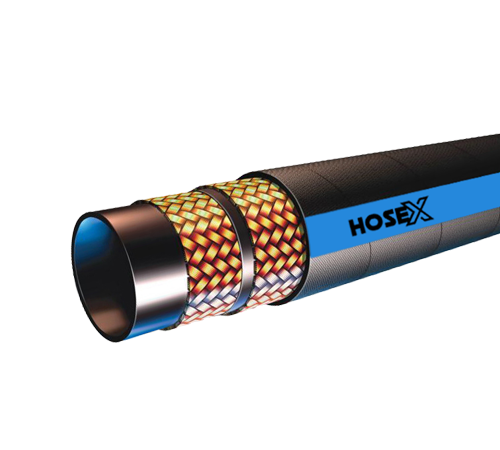

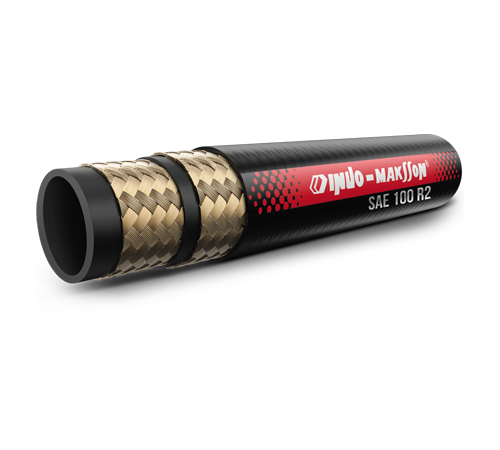

SAE 100 R2 AT

Tube

Synthetic Oil Resistant Rubber

Reinforcement

Two High Tensile Steel Wire Braids

Cover

Black, Weather & Oil Resistant Synthetic Rubber
Upto 19mm - Smooth Finish & 25mm onwards Fabric Impression.

TEMP RANGE

-40°C Approx to +100°C Approx ( +120°C Intermittent )

Applications

High Pressure Hydraulic Lines

MARKING ON THE HOSE

...MM R2 INDO-2AT-IM...HIGH IMPULSE DIN EN 853-2SN ID...MAX WO...BAR/...PSI (EXCEEDS SAE 100 R2 AT ) FLAME RESISTANT

Applicable standards

SAE 100 R2 (DIN EN 853 2SN)

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
1R204	6.40	15.00	4.30	400	5802	1600	23200	100.00	0.35	-	-	Yes	5
1R205	7.90	16.60	4.35	350	5076	1400	20300	115.00	0.40	-	-	Yes	5.
1R206	9.50	19.00	4.75	330	4786	1320	19140	127.00	0.50	-	-	Yes	5
1R208	12.70	22.20	4.75	275	3988	1100	15950	178.00	0.65	-	-	Yes	5
1R210	15.90	25.40	4.75	250	3626	1000	14500	200.00	0.80	-	-	Yes	5
1R212	19.10	29.30	5.10	215	3118	860	12470	241.00	0.94	-	-	Yes	5
1R216	25.40	38.10	6.35	165	2393	660	9570	300.00	1.36	-	-	Yes	5
1R220	31.80	48.30	8.25	125	1813	500	7250	420.00	1.90	-	-	Yes	5.
1R224	38.10	54.60	8.25	90	1305	360	5220	500.00	2.30	-	-	Yes	5
1R232	50.80	67.30	8.25	80	1160	320	4640	635.00	2.95	-	-	YES	5
