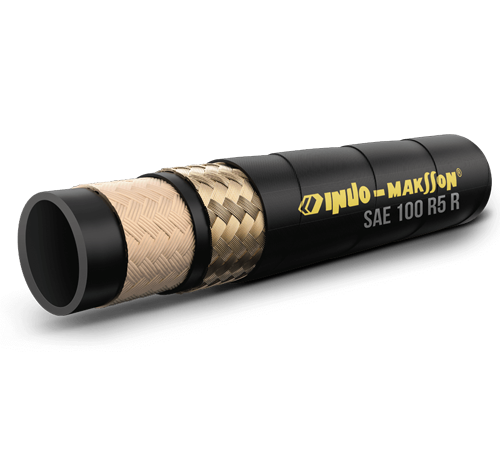

SAE 100 R5R

Tube
  •  Synthetic Oil Resistant Rubber
Reinforcement
  • One Braid of High Tensile Steel Wire Over One Braid of Textile
Cover
  • Weather & Oil Resistant Synthetic Rubber
TEMP RANGE
  • -40°C Approx to +100°C Approx
Applications
  • Medium Pressure Hydraulic Oil Lines
Applicable standards
  • As Per SAE 100 R5

Hoses Description

Item Code ID OD Wall Thickness Working Pressure Working Pressure Bursting Pressure Bursting Pressure Bending Radius Weight Standard Length Vacuum Pressure Ex-Stock MOQ
MM MM MM Bar PSI Bar PSI MM Kg/Mtr Mtr. Bar -- Mtr.
1R5R03 4.80 13.20 4.20 210 3046 840 12180 76.00 - - - No 50
1R5R04 6.40 14.80 4.20 210 3046 840 12180 86.00 - - - No 50
1R5R05 7.90 17.20 4.65 157 2277 628 9106 101.00 - - - No 50
1R5R06 10.30 19.50 4.60 140 2031 560 8120 117.00 - - - No 50
1R5R08 12.70 23.40 5.35 122 1769 488 7076 140.00 - - - No 50
1R5R10 15.90 27.40 5.75 105 1523 420 6090 165.00 - - - No 50
1R5R14 22.20 31.40 4.60 56 812 224 3248 188.00 - - - No 50
1R5R18 28.60 38.10 4.75 43 624 172 2494 229.00 - - - No 50
1R5R22 34.90 44.50 4.80 35 508 140 2030 267.00 - - - No 50
1R5R29 46.00 58.90 6.45 24 348 96 1392 338.00 - - - No 50
