Home / Products / Hoses / Super Jack Hose

Hoses

Standard Color BLACK

Download Brochure

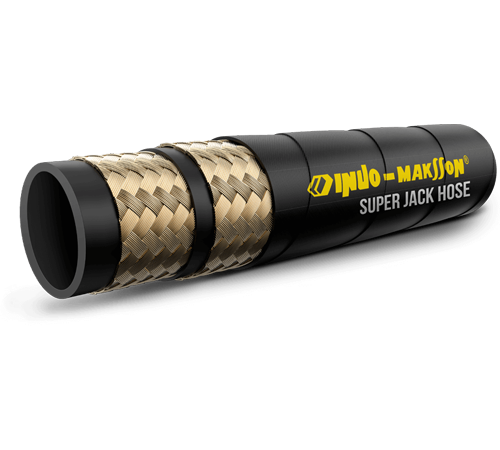

Super Jack Hose

Tube

Synthetic Oil Resistant Rubber

Reinforcement

Two High Tensile Steel Wire Braids

Cover

Weather & Ozone Resistant Synthetic Rubber

TEMP RANGE

-40°C Approx to +50°C Approx

Applications

Designed For Use In Hydraulic Jack Application Used In Jacking Systems

MARKING ON THE HOSE

Size…Jack Hose Indo - Jack - 1M-4-Super Jack Hose ID…WP…Bar/PSI

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
1JACK04	6.40	14.80	4.20	690	10008	1380	20010	102.00	-	-	-	Yes	5
1JACK06	9.500	18.80	4.65	690	10008	1380	20010	127.00	-	-	-	Yes	5

Enquire
