Home / Products / Hoses / Very High Pressure Hose

Hoses

Standard Color BLACK

Download Brochure

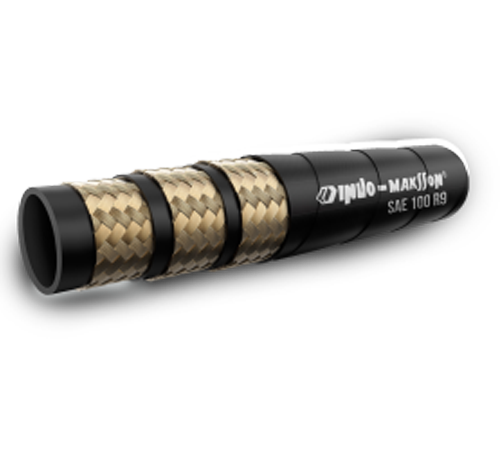

Very High Pressure Hose

Tube

Synthetic Oil Resistant Rubber

Reinforcement

Three High Tensile Steel Wire Braids

Cover

Synthetic Rubber

TEMP RANGE

-40°C Approx to +100°C Approx

Applications

An Extra High Pressure Hose
An Alternative to Multi Spiral Hose Where a Relatively Flexible And High Pressure Hose Is Required

MARKING ON THE HOSE

Size…333-IM-12 Extra High Pressure Hose ID… WP…Bar/PSI Flame Resistant

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
1VHP08	12.70	25.20	6.25	470	6817	1880	27260	160.00	-	-	-	No	100
1VHP10	15.90	27.70	5.90	400	5802	1600	23200	216.00	-	-	-	No	100
1VHP12	19.10	32.50	6.70	355	5149	1420	20590	262.00	-	-	-	No	100
1VHP16	25.40	40.60	7.60	310	4496	1240	17980	318.00	-	-	-	No	100
