Home / Products / Hoses / Fabric HD Hose

Hoses

Standard Color BLACK, BLUE & GREY

Download Brochure

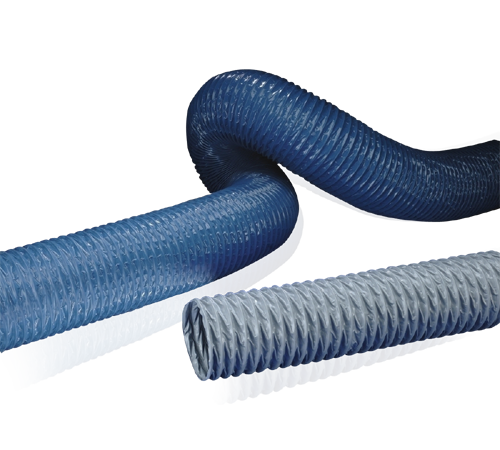

Fabric HD Hose

Tube

Fabric Reinforced Tape

Reinforcement

Spring Steel Wire Integrated in Wall

Cover

PVC Coated Polyester Fabric

TEMP RANGE

-10 °C Approx. to +80 °C Approx.
Short Time to +100 °C Approx.

Applications

For Welding Gas Extraction
For Air Conditioning & Ventilation Technology

Properties

Good Resistance To Alkalis & Acids,Chemicals, UV & Ozone.
Highly Flexible & Compressible 6:1
Capable Of Electro-Static Discharge By Grounding The Spiral.
Flame-Retardant Acc To UL94-HB

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
11FBHD76	76.00	85.00	0.35	0.160	2.320	-	-	85.00	0.230	10	0.080	Yes	10
11FBHD100	100.00	109.00	0.35	0.120	1.740	-	-	109.00	0.320	10	0.050	Yes	10
11FBHD125	125.00	134.00	0.35	0.100	1.450	-	-	134.00	0.420	10	0.040	Yes	10
11FBHD150	150.00	159.00	0.35	0.080	1.160	-	-	159.00	0.550	10	0.030	Yes	10
11FBHD203	203.00	212.00	0.35	0.060	0.870	-	-	212.00	0.860	10	0.020	Yes	10
11FBHD254	254.00	263.00	0.35	0.050	0.730	-	-	263.00	1.200	10	0.010	Yes	10
11FBHD305	305.00	314.00	0.35	0.040	0.580	-	-	314.00	1.300	10	0.010	Yes	10
