Home / Products / Hoses / PU Suction Hose

Hoses

Standard Color TRANSPARENT

Download Brochure

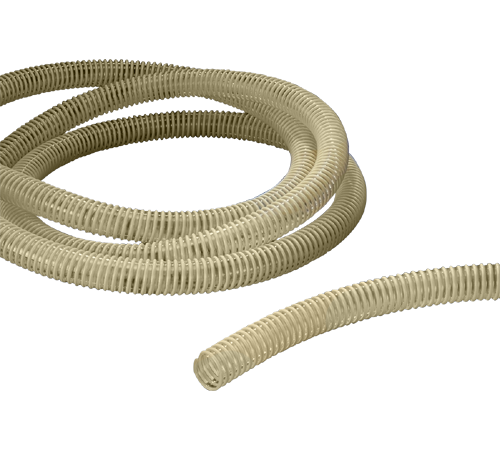

PU Suction Hose

Tube

Ester-Polyurethane with Smooth Interior Wall

Reinforcement

Spiral Hard PVC

Cover

Corrugated with Hard PVC Spiral

TEMP RANGE

-20 °C Approx. to +70 °C Approx.
Short Time to +80 °C Approx.

Applications

For Abrasive Solids such as Dust, Powder, Fibers, Chip and Granulates.
For Gaseous and Liquid Media
For De-Dusting and Suction Plants, Industrial Vacuum Cleaner.
Suction of Paper and Textile Fibers as Resistant Protection Hose.

Properties

Light Model
Abrasion Proof
Optimized Flow Properties
Smooth Interior Layer
Good Flexibility and Durability
Good Resistance Alkalis, Acids, Chemicals, UV and Ozone.
Small Bending Radius
Gas and Liquid Tight
Flame-Retardant Acc to UL 94-HB

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
11PUS25	25.00	31.00	-	1.00	15	-	-	31.00	0.140	20	0.250	NO	300
11PUS32	32.00	38.00	-	0.85	12	-	-	38.00	0.170	20	0.200	NO	300
11PUS38	38.00	45.00	-	0.75	11	-	-	50.00	0.220	20	0.200	NO	300
11PUS40	40.00	47.00	-	0.75	11	-	-	60.00	0.230	20	0.200	NO	300
11PUS50	50.00	58.00	-	0.50	7	-	-	70.00	0.310	20	0.200	NO	150
11PUS60	60.00	68.00	-	0.50	7	-	-	80.00	0.470	20	0.200	NO	150
11PUS63	63.00	71.00	-	0.45	7	-	-	80.00	0.500	20	0.200	NO	150
11PUS76	76.00	85.00	-	0.40	6	-	-	100.00	0.600	20	0.200	NO	150
11PUS100	100.00	110.00	-	0.28	4	-	-	150.00	0.820	20	0.200	NO	90
11PUS125	125.00	136.00	-	0.25	4	-	-	170.00	1.200	20	0.200	NO	60
11PUS150	150.00	162.00	-	0.18	3	-	-	200.00	1.650	20	0.200	NO	60
