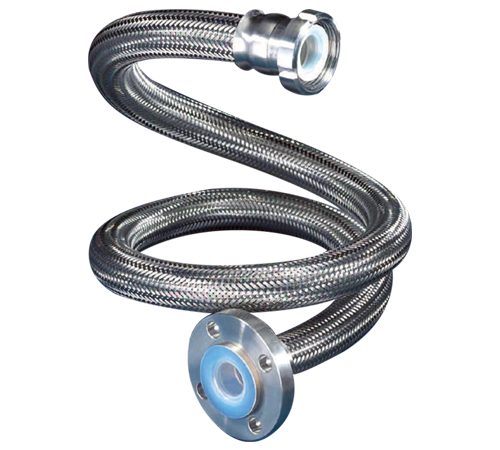

PTFE Hose Assemblies

Applications

Features

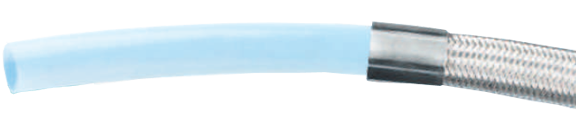

TEFLON (PTFE) HOSE WITH SS BRAID

Teflon, or Polytetrafluoroethylene(PTFE), to give it its full chemical name, was discovered in 1938 by DuPont scientist Dr. Roy Plunkett.
Teflon/PTFE Is a plastic resin in the Fluorocarbon group.
This high molecular weight resin displays outstanding resistance to a wide variety of chemicals. Combined with its superior nonstick properties and wide temperature range, hoses made from Teflon/PTFE are the ideal problem solvers for virtually all aggressive applications.

304 Stainless Steel Bra id

SIZE		ID	OD	WALL THICKNESS	WORKING PRESSURE		BREAKING PRESSURE		BENDING RADIUS
inch	mm	mm	mm	mm	bar	psi	bar	psi	mm+-mm
3/16	5	4.64-5.17	7.29-8.48	0.75	251	3640	613	8891	76
1/4	6	5.96-6.83	8.22-9.46	0.76	228	3307	542	7861	81
5/16	8	7.55-8.39	10.31-11.71	0.8	190	2756	530	7687	131
3/8	10	9.91-10.67	12.73-14.18	0.89	159	2306	443	6425	182
1/2	13	12.54-13.37	15.72-16.73	0.95	136	1973	417	6048	211
5/8	16	15.19-16.59	18.57-20.18	1.0	99	1436	378	5482	252
3/4	19	18.75-20.78	22. 5-23.77	1.2	95	1378	304	4409	342
7/8	22	21.39-23.05	24.59-27.03	1.5	93	1349	235	3408	421
1	25	24.25-25.85	28.45-29.65	1.5	76	1102	196	2843	501

SIZE		ID	OD	WALL THICKNESS	WORKING PRESSURE		BREAKING PRESSURE		BENDING RADIUS
inch	mm	mm	mm	mm	bar	psi	bar	psi	mm+-mm
1/4	6	6.75-6.56	9.85-10.55	1.0	151	2189	450	6525	32
5/16	8	7.75-8.55	12.25-13.15	1.0	126	1827	370	5365	36
3/8	10	9.14-10.25	15.85-16.55	1.0	105	1522	324	4698	59
1/2	13	12.45-13.25	18.45-19.36	1.0	90	1305	270	3915	82
5/8	16	15.35-16.25	24.85-25.55	1.5	72	1044	256	3697	95
3/4	19	18.6-19.85	28.25-29.55	1.5	60	870	231	3349	113
7/8	22	21.84-22.86	32.25-33.55	2	52	754	189	2740	145
1	26	24.89-26.16	35.55-36.85	2	47	681	144	2088	189

For further details, kindly download the catalogue.
