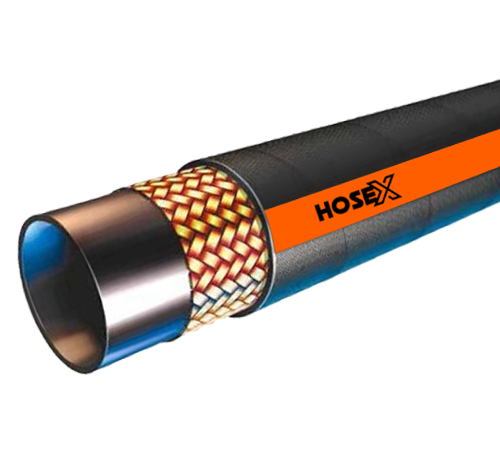

SAE 100 R1 AT Smooth Finish

Tube

Oil Resistant Synthetic Rubber

Reinforcement

One High Tensile Steel Braid

Cover

Environment & Oil Resistant Synthetic Rubber
Outer Smooth Finish

TEMP RANGE

Continuous Service: -40°C/+100°C
MaximumTemperature:(Intermittent Service) 125°C

Applications

Low - Medium Pressure Lines, Return Lines

MARKING ON THE HOSE

HoseX 1SN DN 25 DIN/EN 853 - Exceeds SAE 100 R1 AT 1" mm - WP 8.8 Mpa/88 Bar/1276 Psi - MSHA

Applicable standards

SAE 100 R1 AT(EN 853 1SN)

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
7R104(P)	6.40	13.50	3.55	225	3263	900	13050	100	0.24	-	-	Yes	5
7R105(P)	7.90	15.00	3.55	215	3118	860	12470	115	0.28	-	-	Yes	5
7R106(P)	9.50	17.50	4.00	180	2611	720	10440	127	0.40	-	-	Yes	5
7R108(P)	12.70	20.70	4.00	160	2321	640	9280	178	0.53	-	-	Yes	5
7R110(P)	15.90	23.90	4.00	130	1885	520	7540	200	0.64	-	-	Yes	5
7R112(P)	19.10	27.70	4.30	105	1523	420	6090	241	0.75	-	-	Yes	5
7R116(P)	25.40	35.60	5.10	88	1276	352	5104	300	1.00	-	-	Yes	5
