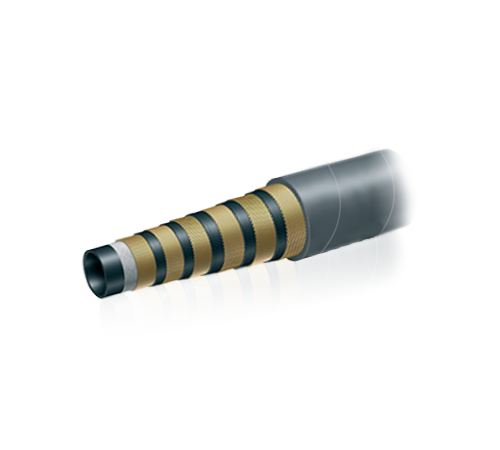

SAE J 517 - 100 R15

Tube

Oil Resistant Synthetic Rubber

Reinforcement

Four Or Six High Tensile Spirals

Cover

Environment & Oil Resistant
Synthetic Rubber

TEMP RANGE

-40°C to +121°C

Applications

Very High Pressure Power Lines
Suitable for Impulse Surge Lines With More Life Cycles For use With Petroleum, Synthetic or Water Based Fluids

MARKING ON THE HOSE

HoseX 6S DN40 EXCEEDS SAE J 517 10 R15 1.1/2"- 38.1 MM-WP 42 Mpa/420 Baar/ 6090 PSI-MSHA

Applicable standards

SAE J 517 - 100 R15
ISO 3862

Features

Weather, Abrasion & Oil Resistnt

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501R1516	25.70	38.90	6.60	420	6092	1680	24360	330	2.28	40	-	NO	1
501R1520	32.20	48.40	8.10	420	6092	1680	24360	445	4.27	40	-	NO	1
501R1524	38.50	58.00	9.75	420	6092	1680	24360	530	5.75	40	-	YES	1
501R1532	51.20	71.20	10.00	420	6092	1680	24360	600	8.22	40	-	YES	1
