Thermoplastic SAE 100 R8

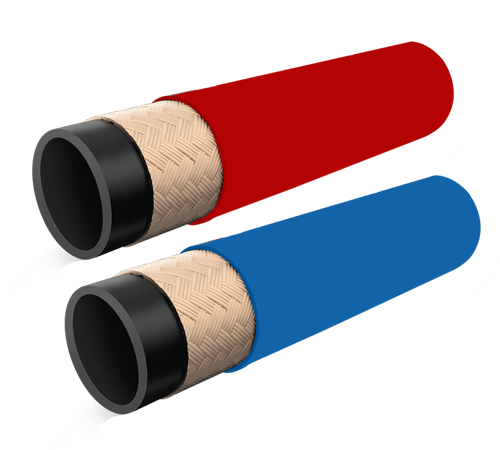

Tube

Thermoplastic Elastomer

Reinforcement

2 Braid of Synthetic Fibre

Cover

Black Color,Pin Pricked Polyurethane

TEMP RANGE

-40°C to +100°C
Temp. Not to Exceed +70°C For Air & Water Based Fluids

Applications

High Pressure Hydraulic Lines 140 to 350 Bar
Compact, High Pressure, Light Weight & Low Change in Length
For use with Petroleum, Synthetic or Water Based Fluids in Hydraulic Systems
Suitable for Agricultural Machinery, Earthmoving, Articulating & Telescopic Booms and Material Handling Equipments.
Can be Used for Industrial Gases & Other Applications

MARKING ON THE HOSE

SAE 100 R8 ID…WP…PSI(…BAR)

Properties

Suitable for Hydraulic Application with Increased Resistance To Abrasion

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501TPR804	6.40	16.10	4.85	350	5076	1400	20300	45.00	0.21	-	-	Yes	5
501TPR805	8.00	16.70	4.35	290	4206	1160	16820	55.00	0.22	-	-	Yes	5
501TPR806	9.50	18.50	4.50	280	4061	1120	16240	65.00	0.24	-	-	Yes	5
501TPR808	12.70	22.60	4.95	245	3553	980	14210	77.00	0.34	-	-	Yes	5
501TPR810	16.00	25.60	4.80	190	2756	760	11020	100.00	0.38	-	-	Yes	5
501TPR812	19.00	28.90	4.95	155	2248	620	8990	140.00	0.45	-	-	Yes	5
501TPR816	25.40	36.10	5.35	140	2031	560	8120	200.00	0.61	-	-	No	100
