Hoses

Standard Color TRANSPARENT WITH THREE COLOURED LINE

Download Brochure

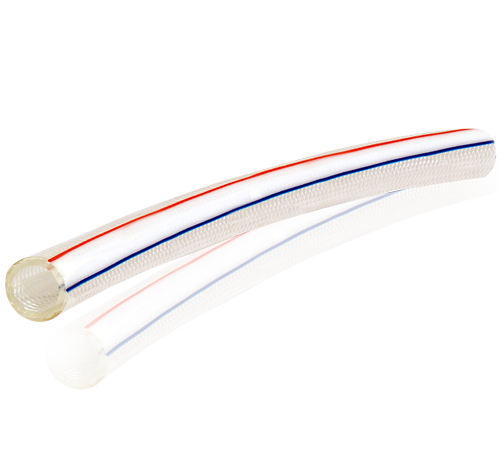

Tornado Poly Food

Tube

Strong Very Flexible & Smooth Non Toxic , Transparent FDA Food Grade Plasticized PVC Inner

Reinforcement

High Quality Polyster Fibre Reinforcement

Cover

Abrasion & Weather Resistant Smooth FDA Food Grade Plasticized PVC Outer

TEMP RANGE

-5 °C Approx. to +65 °C Approx

Applications

Delivery Of Food Liquids, Beverages,Fruit Juices, Milk, Wine & Liquor
Suitable For Drinking Water
For Vending Machines, Food Packing Machines, Ice Machine & Refrigerators

MARKING ON THE HOSE

TORNADO FDA Non Toxic Food Braided Hose…(-5°C to + 65°C) ID…mm..WP…Bar

Applicable standards

US FDA 21 CFR 175.300

Properties

Free of Phthalates & Heavy Elements
FDA Certified Hose With Test Certificate
Food Grade, Non Toxic & Odour Free
Specially Designed For Food Conveying

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
501TPF06	6.00	12.00	3.00	10	145	30	435	30.00	0.110	50	-	Yes	5
501TPF10	10.00	16.00	3.00	9	131	27	390	45.00	0.160	50	-	Yes	5
501TPF12	12.00	18.00	3.00	8	116	24	345	52.00	0.190	50	-	Yes	5
501TPF15	15.00	21.00	3.00	6	87	18	260	65.00	0.230	50	-	Yes	5
501TPF19	19.00	26.00	3.50	6	87	18	260	80.00	0.330	50	-	Yes	5
