Hoses

Standard Color BLUE

Download Brochure

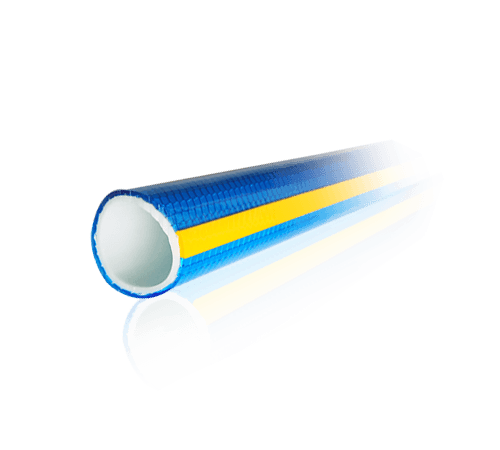

Flat Hose

Tube

Flexible Smooth Plasticized PVC
Inner Surface Smooth Highly Flexible

Reinforcement

Syntehetic Yarn Reinforcement

Cover

Smooth Plasticized PVC

TEMP RANGE

-10 °C Approx. to +70 °C Approx.

Applications

In Agriculture Use Mainly As Delivery Hose
At Construction Sites, Mines & Quarries, Flushing Is Faster With ItlinFlex Flat Hose
For Transferring Corrosive Chemicals & Liquids In Chemical Factories.
Ideal For Use As Drainage Hose In Emergency/ Flood / Disaster Situatios When Large Quantities Of Water Must Be Moved Quickly.

MARKING ON THE HOSE

Itlinflex Lay Flat Delivery Hose Size…WP…Mfg AAPL ( India ) Code…1 mtr

Properties

Tough & Puncture Proof. Can resist External Pressure & Abrasion In Use Gives A Long Service Life.
Can Carry Water / Liquids In Higher Heads & In Hilly Areas Without Inflation.

Features

Requires No Maintenance .Do Not Rust Corrode Or Require Cathodic Protection.
Roll Up Easily, Requires Minimum Storage Space and is Light Weight Too.
Remains Soft & Pliable Even In Extremely Cold Weather & At Below Freezing Tempertaure.

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
4FLAT25	26.00	27.60	0.80	4.00	58	12.00	174	-	-	100	-	No	100
4FLAT32	32.50	34.30	0.90	4.00	58	12.00	174	-	-	100	-	No	100
4FLAT38	40.00	42.00	1.00	4.00	58	12.00	174	-	-	100	-	Yes	100
4FLAT50	52.00	54.20	1.10	4.00	58	12.00	174	-	0.22	100	-	Yes	100
4FLAT65	65.00	67.40	1.20	3.50	51	10.50	150	-	0.31	100	-	Yes	100
4FLAT75	76.50	78.90	1.20	3.50	51	10.50	150	-	0.36	100	-	Yes	100
4FLAT100	102.50	104.90	1.20	3.00	44	9.00	135	-	0.51	100	-	Yes	100
4FLAT150	153.50	156.50	1.50	3.00	44	9.00	135	-	1.00	100	-	Yes	100
4FLAT200	202.50	206.10	1.80	2.50	36	7.50	110	-	1.75	50	-	Yes	50
