Hoses

Standard Color RED FOR ACETYLENE & BLUE FOR OXYGEN

Download Brochure

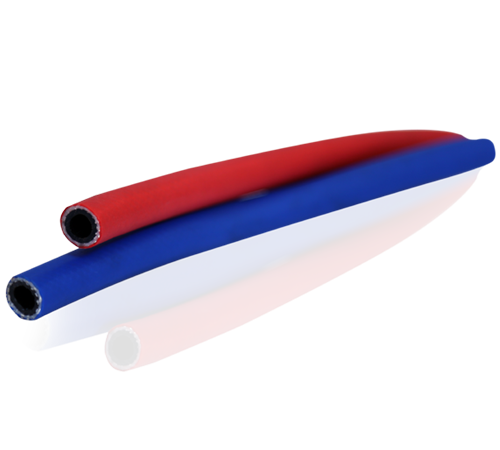

Welding Hose

Tube

Strong Very Flexible & Smooth Black Plasticized PVC

Reinforcement

High Strength Polyster Fibre Braid

Cover

Abrasion & Weather Resistant Thermoplastic Outer

TEMP RANGE

-10°C Approx to +65°C Approx

Applications

For Use In Welding Application

MARKING ON THE HOSE

Twin Welding Hose :-

Blue Colour - TUBITEC Welding Twin Hose 8mm x 14mm WP:4 MPA ( 40 Bar ) Exceeds IS 447:1988 Type II
Red Colour - The Product Excels at Fire Resistance And Flexibility Single Welding Hose
Blue Colour - TUBITEC Welding Hose 8mm x 14mm ( Oxygen & Fuel Gas ) WP:4 MPA ( 40 Bar ) Exceeds IS 447:1988 Type II
Red Colour - TUBITEC Welding Hose 8mm x 14mm ( Acetylene ) WP: 4 MPA ( 40 Bar ) Exceeds IS 447:1988 Type II

Features

Light & Elastic
Anti Erosion
Flame Resistant

Hoses Description


Item Code	ID	OD	Wall Thickness	Working Pressure	Working Pressure	Bursting Pressure	Bursting Pressure	Bending Radius	Weight	Standard Length	Vacuum Pressure	Ex-Stock	MOQ
	MM	MM	MM	Bar	PSI	Bar	PSI	MM	Kg/Mtr	Mtr.	Bar	--	Mtr.
15WLDR6	6.00	12.00	3.00	50	725	150	2175	-	0.11	100	-	Yes	100
15WLDB6	6.00	12.00	3.00	50	725	150	2175	-	0.11	100	-	Yes	100
15WLDR8	8.00	14.00	3.00	40	580	120	1740	-	0.14	100	-	Yes	100
15WLDB8	8.00	14.00	3.00	40	580	120	1740	-	0.14	100	-	Yes	100
15WLDR10	10.00	17.00	3.50	40	580	120	1740	-	0.20	100	-	Yes	100
15WLDB10	10.00	17.00	3.50	40	580	120	1740	-	0.20	100	-	Yes	100
15WLDTWIN6	6.00	12.00	3.00	50	725	150	2175	-	0.23	100	-	Yes	100
15WLDTWIN8	8.00	14.00	3.00	40	580	120	1740	-	0.28	100	-	Yes	100
